WINTRISS WEB RANGER®

High-Performance, Expandable, Cost-Effective

The Web Ranger® is an optical surface inspection and defect classification system that provides a total quality solution for products produced in continuous webs. The system is comprised of Smart Cameras, Patented Lighting, and Defect Detection Software. The highly modular design allows the system to be tailored to any application based on web width, web speed, and defect size (resolution) requirements. The incorporation of smart cameras with embedded processing resources enables the system to provide 100% inspection of the material and rapid, accurate detection of defects.

MODULAR ARCHITECTURE



SMART CAMERAS   Smart cameras with embedded processing resources enables the system to provide 100% inspection of the material and rapid, accurate detection of defects.

SMART CAMERAS

Smart cameras with embedded processing resources enables the system to provide 100% inspection of the material and rapid, accurate detection of defects.

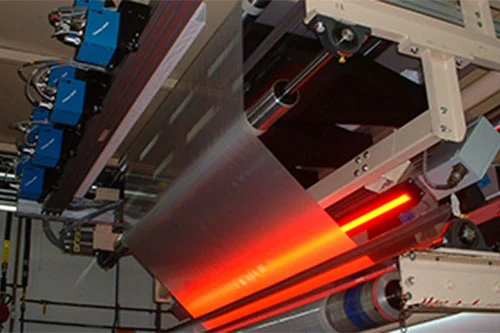

SURFACE LIGHTING   Wintriss linear light technologies are optimized for web inspection and the challenge of operating in 24/7 production environments.

SURFACE LIGHTING

Wintriss linear light technologies are optimized for web inspection and the challenge of operating in 24/7 production environments.

DETECTION SOFTWARE   A powerful classification engine quickly and accurately sorts the defects into user-defined categories to aid in production quality control and process improvement.

DETECTION SOFTWARE

A powerful classification engine quickly and accurately sorts the defects into user-defined categories to aid in production quality control and process improvement.
